S17122319S17122319 – 122mm X 372mm Bonded Bearing

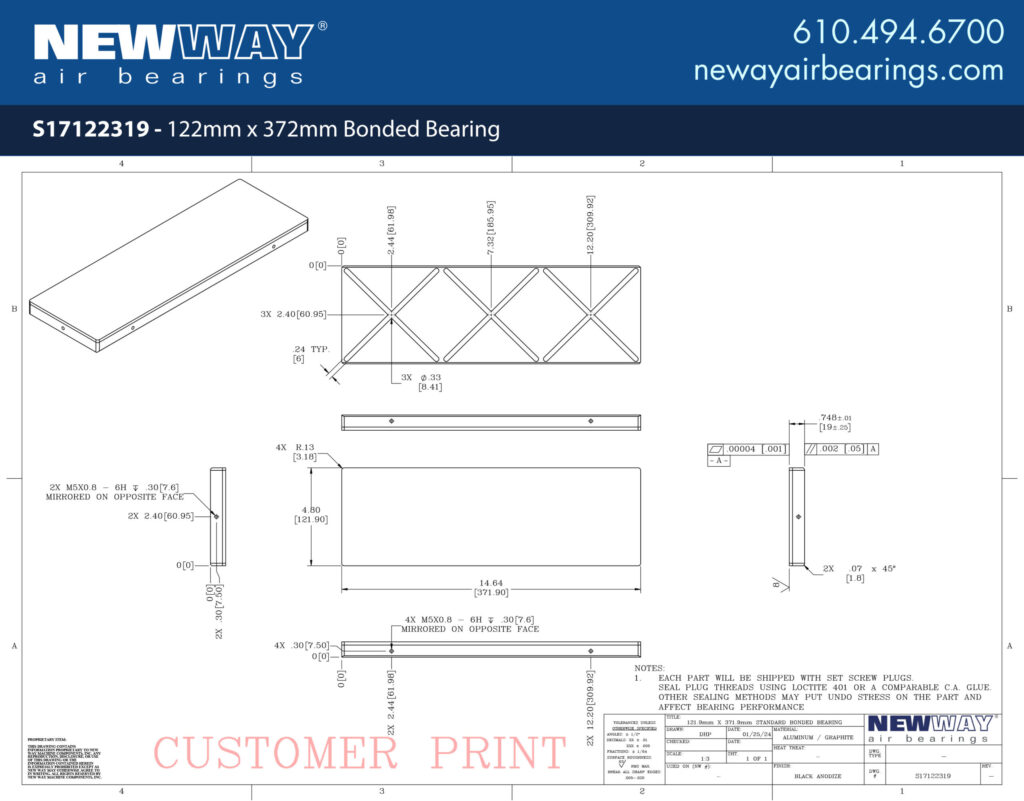

122mm X 372mm Bonded Bearing

122mm X 372mm Bonded Bearing
S17122319S17122319

New Way’s 122mm x 372mm Bonded Bearing offers a solution for space-constrained linear applications. Bonded bearings are a low-profile version of our flat rectangular bearings as well as a critical component of our popular Linear Slides. Sold as a standalone component, bonded bearings are able to be positioned accurately through the use of vacuum replication prior to bonding the bearing into place. The large length size relative to the width is accommodated through additional sets of air grooves to ensure even distribution of air for optimum performance.

Contact us today at 610.494.6700 for more information on using bonded bearings in your application!

Units: US METRIC
TitleSpecifications
SKUS17122319S17122319
Width121.9 mm4.80 in.
Length371.9 mm14.64 in.
Height19 mm0.75 in.
Ideal Load11677 N2625.1 lbs.
Flow4.6 SLPM0.16 SCFM
Bearing Weight1988.9 gm70.2 oz.
# of Grooves33
Pressure Port ThreadM5 x 0.8M5 x 0.8
